DSTPML-125A-+90kwTwo-stage-Compression-PM-VSD-Low-Pressure-screw-compressor

DSTPML-125A Two-stage Compression PM VSD Low Pressure screw compressor

MODEL：DSTPML-125A

POWER：90KW

HORSEPOWER：125HP

Product desciption

The working pressure of compressed air required by the textile, cement, chemical fiber, glass, ceramics and other industries is only 0.3-0.5Mpa. However, these industries are generally implemented by using 0.7-1.0Mpa air compressor with a pressure reducing valve. The machine electricity fee is invisible. It is wasted in vain, and with the Desran permanent magnet low-pressure screw compressor, you get amazing power saving effect under the same air consumption.

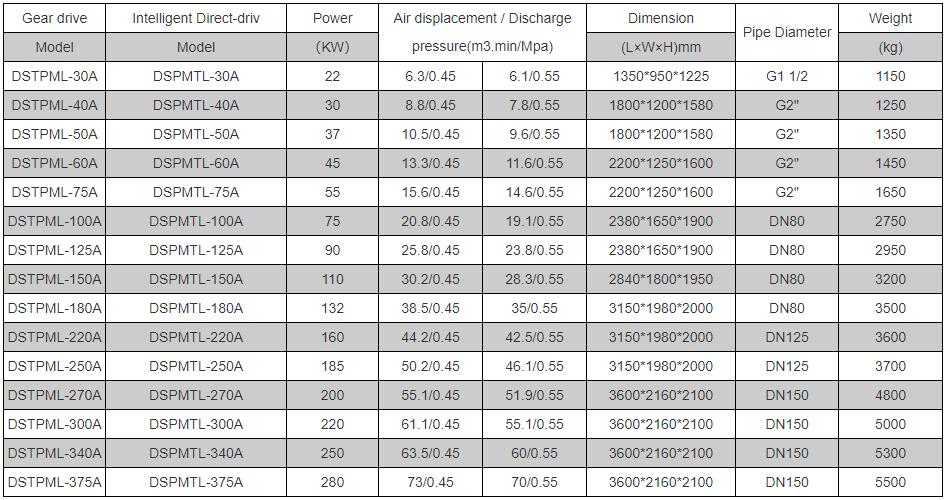

Technical parameters of Two-stage PM motor VSD low pressure screw air compressor

Gear drive	Intelligent Direct-driv	Power	Air displacement / Discharge pressure(m3.min/Mpa)		Dimension	Pipe Diameter	Weight
Model	Model	（KW）	Air displacement / Discharge pressure(m3.min/Mpa)		(L×W×H)mm	Pipe Diameter	(kg)
DSTPML-30A	DSPMTL-30A	22	6.3/0.45	6.1/0.55	13509501225	G1 1/2	1150
DSTPML-40A	DSPMTL-40A	30	8.8/0.45	7.8/0.55	180012001580	G2"	1250
DSTPML-50A	DSPMTL-50A	37	10.5/0.45	9.6/0.55	180012001580	G2"	1350
DSTPML-60A	DSPMTL-60A	45	13.3/0.45	11.6/0.55	220012501600	G2"	1450
DSTPML-75A	DSPMTL-75A	55	15.6/0.45	14.6/0.55	220012501600	G2"	1650
DSTPML-100A	DSPMTL-100A	75	20.8/0.45	19.1/0.55	238016501900	DN80	2750
DSTPML-125A	DSPMTL-125A	90	25.8/0.45	23.8/0.55	238016501900	DN80	2950
DSTPML-150A	DSPMTL-150A	110	30.2/0.45	28.3/0.55	284018001950	DN80	3200
DSTPML-180A	DSPMTL-180A	132	38.5/0.45	35/0.55	315019802000	DN80	3500
DSTPML-220A	DSPMTL-220A	160	44.2/0.45	42.5/0.55	315019802000	DN125	3600
DSTPML-250A	DSPMTL-250A	185	50.2/0.45	46.1/0.55	315019802000	DN125	3700
DSTPML-270A	DSPMTL-270A	200	55.1/0.45	51.9/0.55	360021602100	DN150	4800
DSTPML-300A	DSPMTL-300A	220	61.1/0.45	55.1/0.55	360021602100	DN150	5000
DSTPML-340A	DSPMTL-340A	250	63.5/0.45	60/0.55	360021602100	DN150	5300
DSTPML-375A	DSPMTL-375A	280	73/0.45	70/0.55	360021602100	DN150	5500
